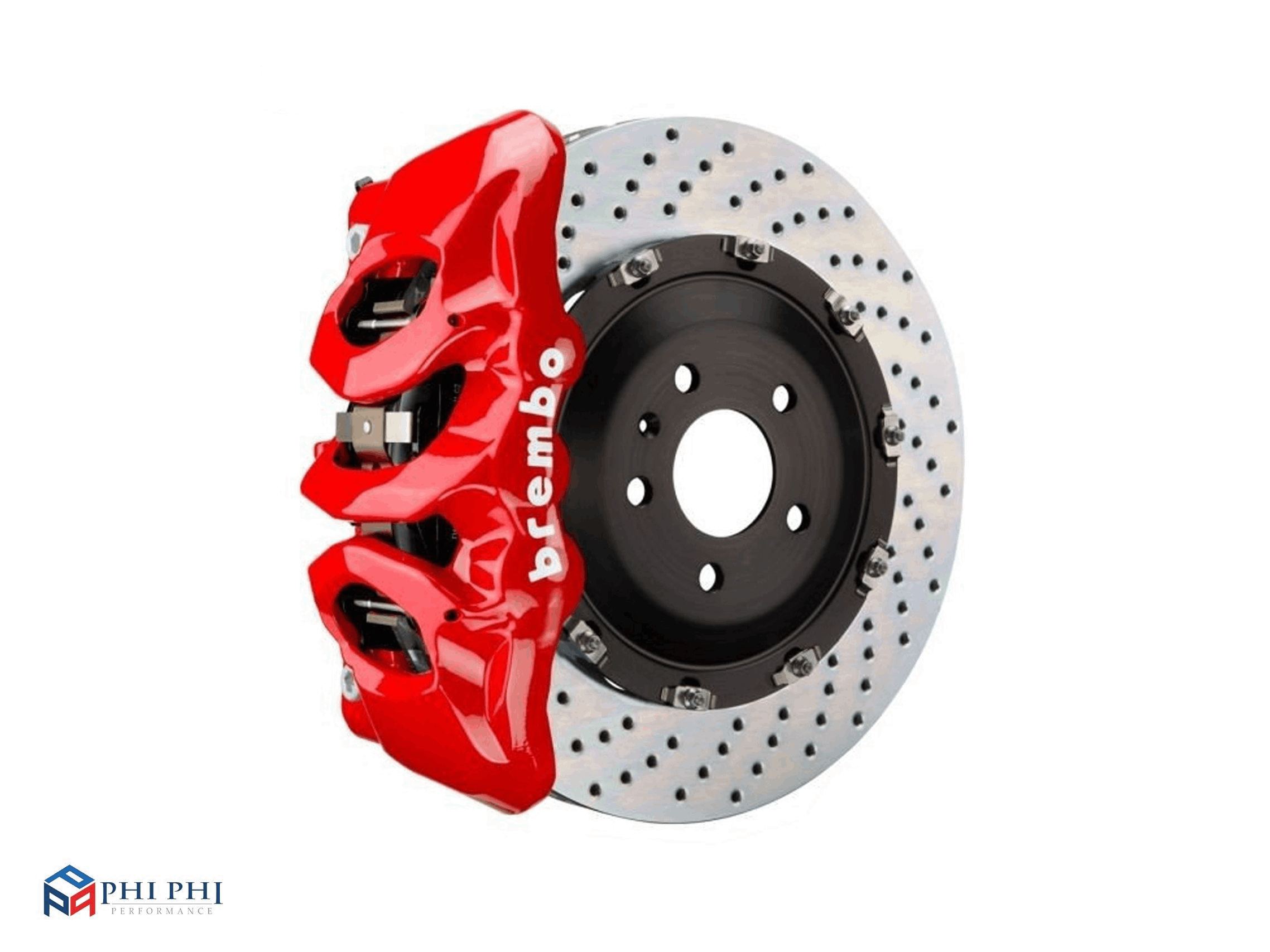

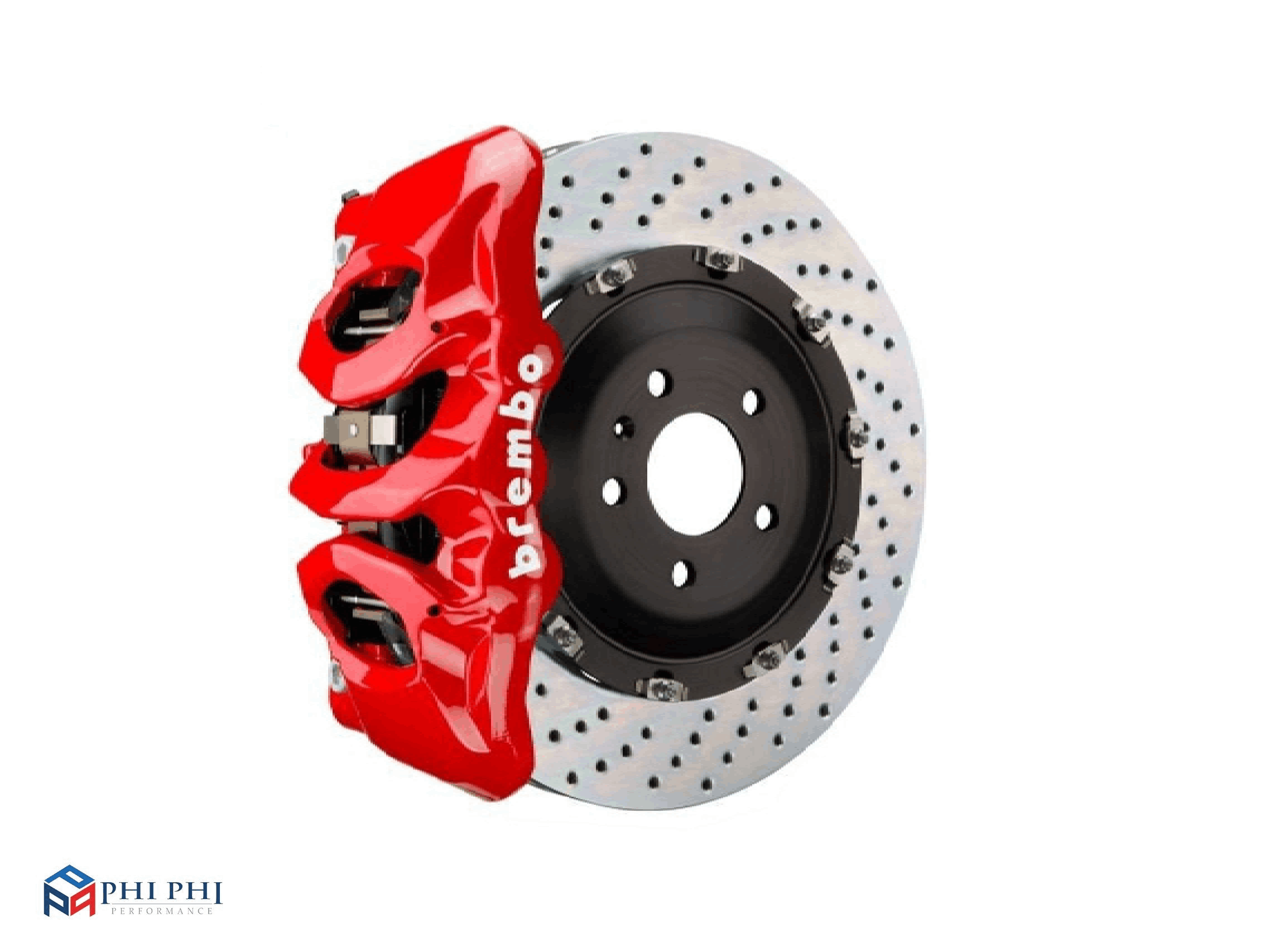

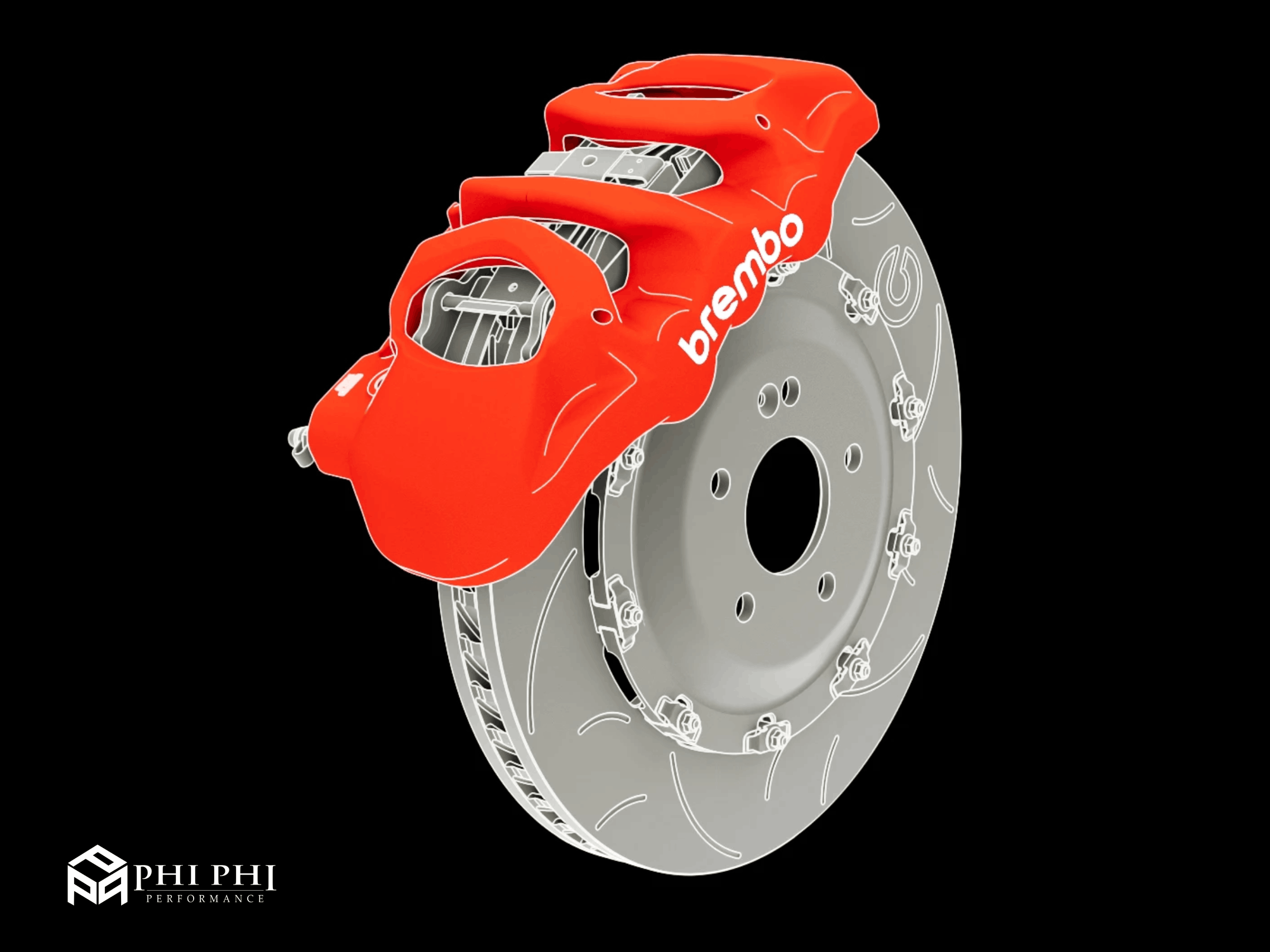

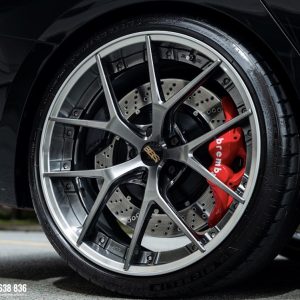

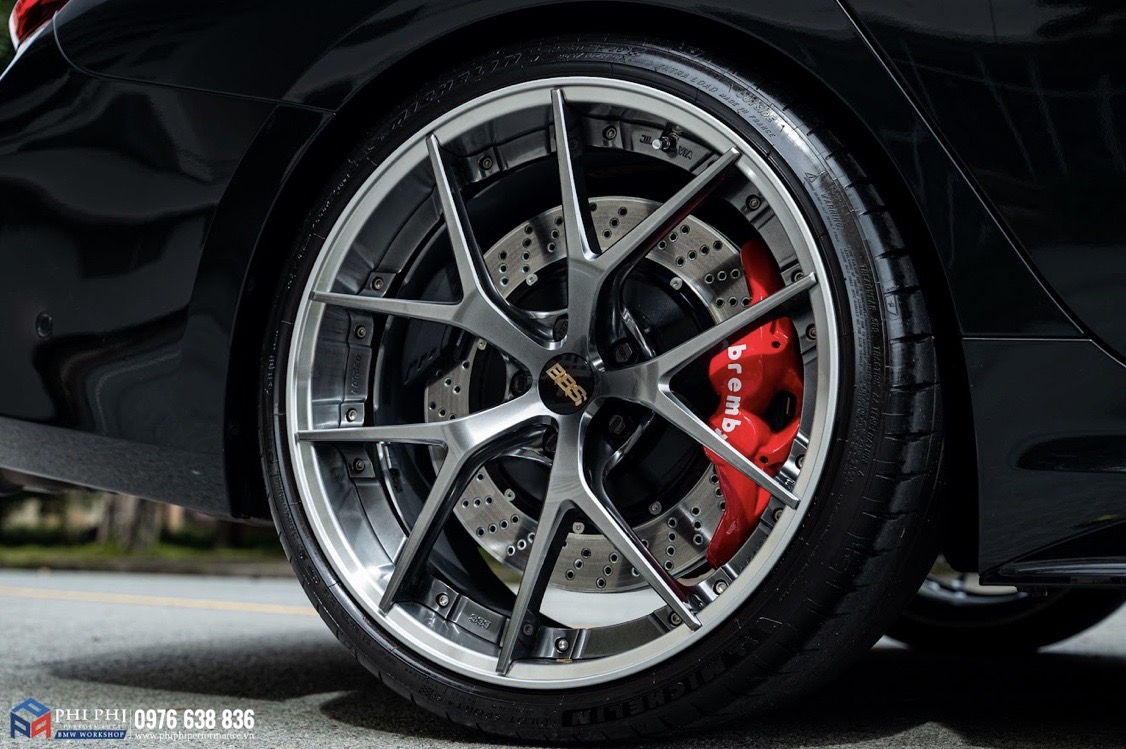

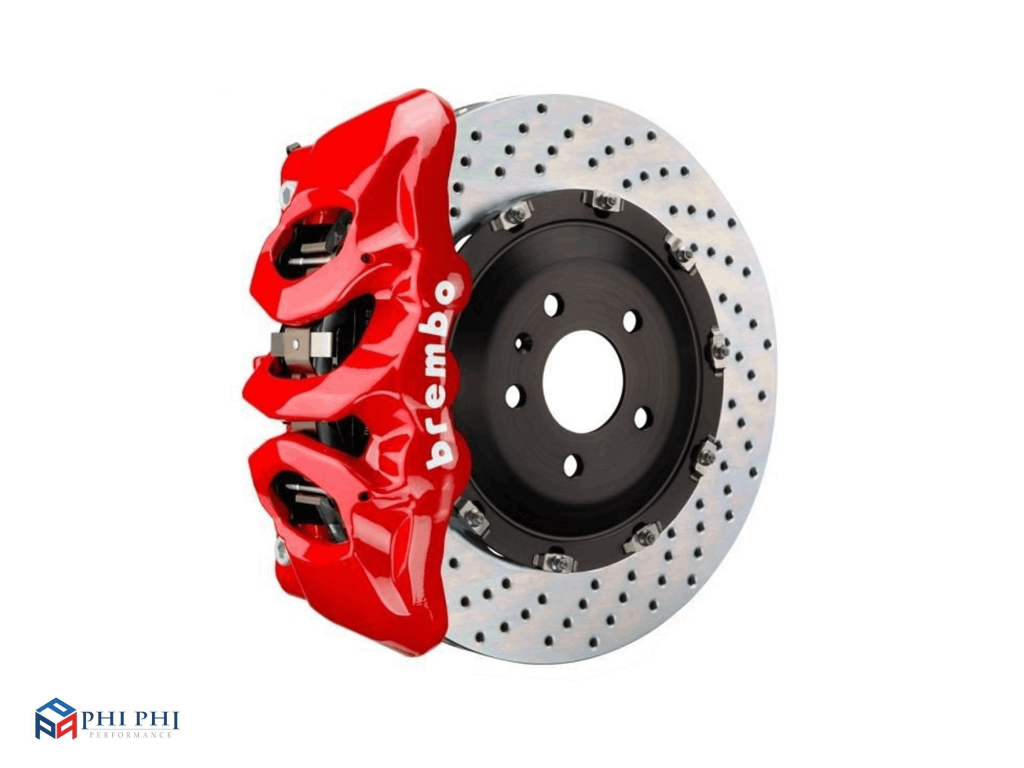

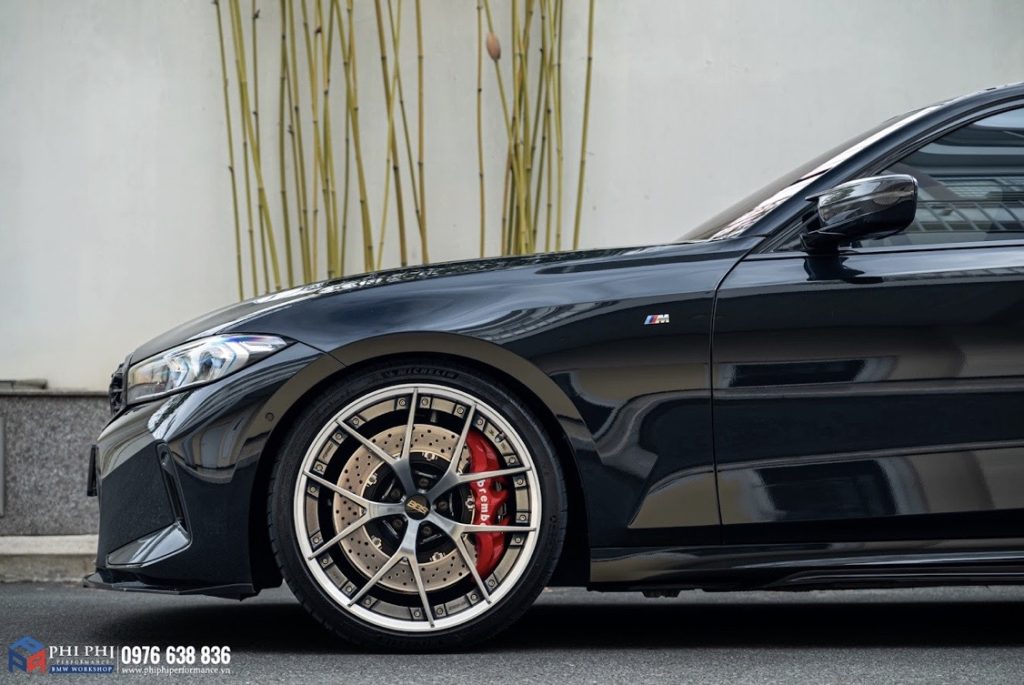

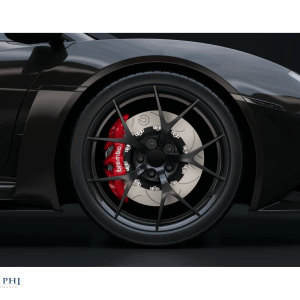

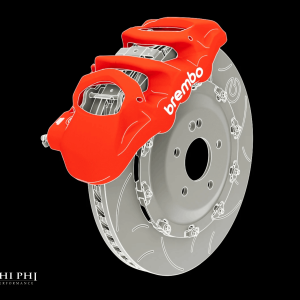

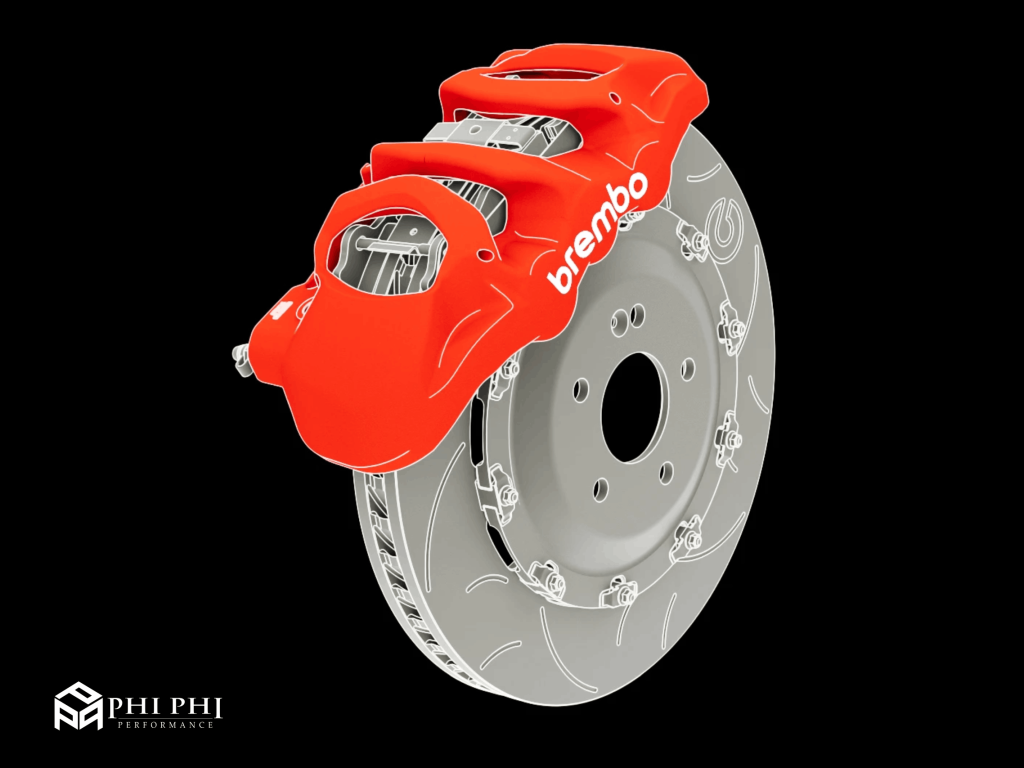

Brembo B-M6 6 Piston Big Brake Kit

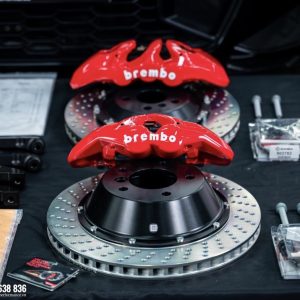

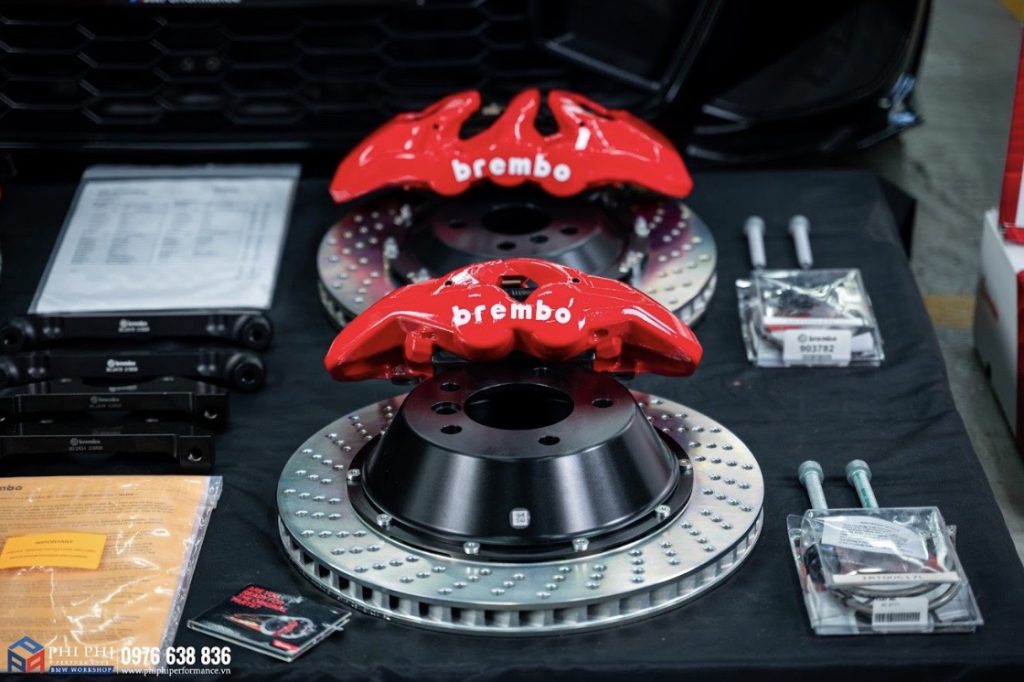

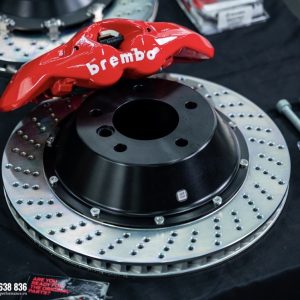

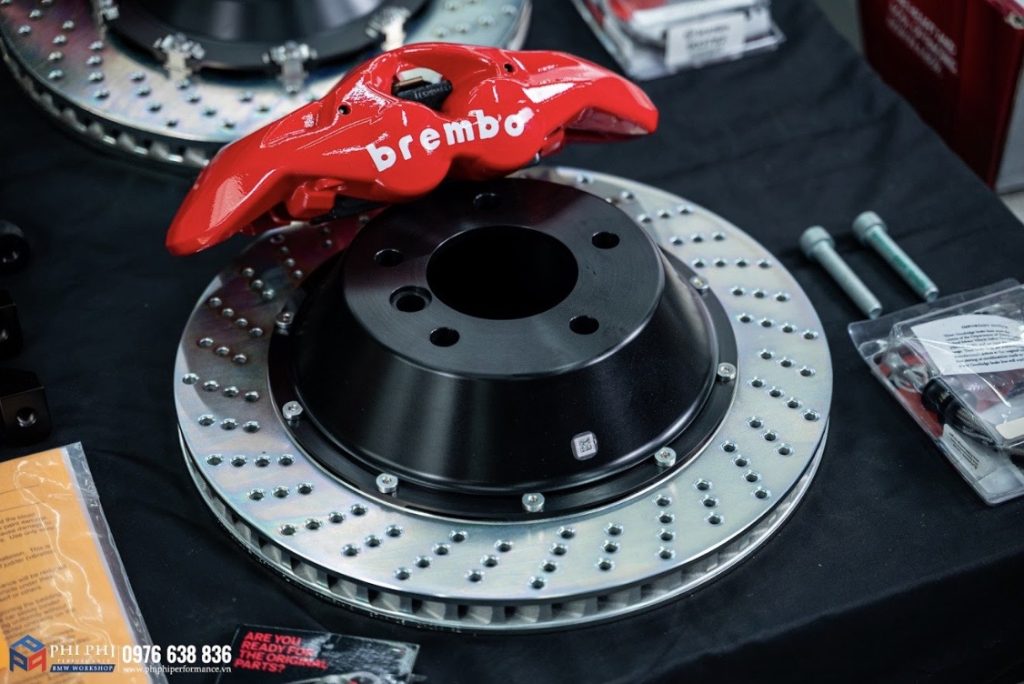

The B-M6 represents the latest in Brembo’s experience in caliper design. The B-M6 kit includes new 380mm two piece rotors, along with pads, lines and all hardware necessary for installation.

       Quick Info:

• Caliper Body: Cast Monoblock Radial Mount
• Caliper Piston Configuration: 6 Piston
• Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot
• Size: 380x34mm (14.96”)

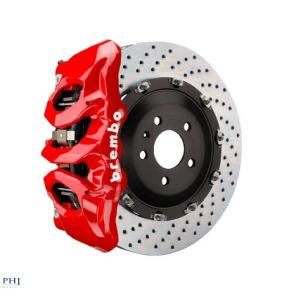

• Rotor Design: Cross-drilled, Slotted or Type 3 patterns available
• Rotor Vane Design: Vented Curved 48 Vane
• All necessary hardware included

The B-M6 is manufactured using a new, innovative 4D technology casting process, and is the first time this process has been used for automotive calipers. This casting process uses a technology that enables Brembo to engineer a design completely different from what is usually seen in the caliper market. With this technology, the casted caliper has technical features commonly used in racing billet or forged calipers. The B-M6 is casted with an internal fluid line versus the more conventional rigid pipe connections. The one non-visible bleeding screw allows for more safety and freedom in the design since it is better integrated into the overall design. The B-M6 is the most efficient body architecture and style and designed without constrains on the outboard caliper manufactured by traditional molds.
